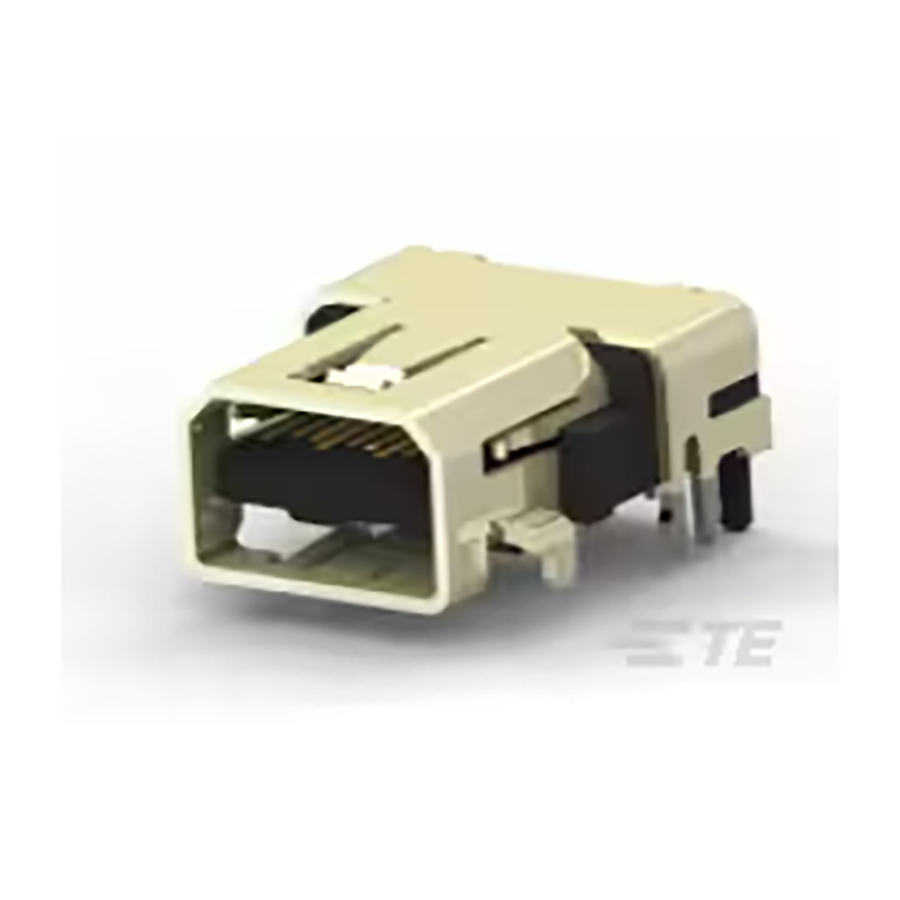

2129320-3
Manufacturer:
TE Connectivity
Mfr.Part #:
2129320-3
Datasheet:
Description:
Audio / Video Connectors Through Hole Female Number of Positions:20 Right Angle DisplayPort
| Parameter | Value |
|---|---|
| Length | 11.4 mm |
| Termination | Solder |
| Height | 5.37 mm |
| Packaging | Reel |
| Depth | 12.65 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 600 µm |
| Number of Terminals | 20 |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Gender | Female |
| Number of Contacts | 20 |
| ELV | Compliant |
| Connector Type | DisplayPort |
| Number of Positions | 20 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Housing Color | Black |
| Tail Length | 1.4 mm |
| Shell Material | Stainless Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
Stock: 10683
Distributors
pcbx
pcbxUnit Price$1.60813
Ext.Price$1.60813
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.60813 | $1.60813 |
| 10 | $1.37045 | $13.70450 |
| 25 | $1.28923 | $32.23075 |
| 50 | $1.22683 | $61.34150 |
| 100 | $1.17040 | $117.04000 |
| 300 | $1.05265 | $315.79500 |
| 500 | $0.94675 | $473.37500 |
| 1000 | $0.85151 | $851.51000 |
